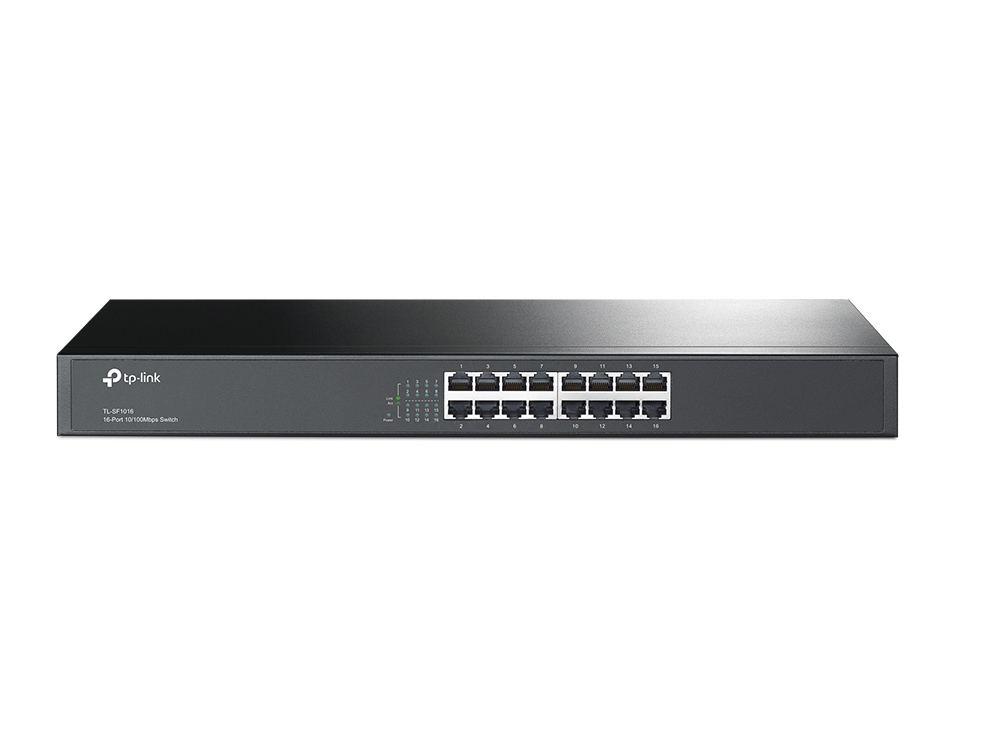

TP-Link TL-SF1016

TP-Link TL-SF1016

16-Port 10/100Mbps Rackmount Switch
16 10/100Mbps RJ45 ports
Green Ethernet technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

Specifications

HARDWARE FEATURES

Standards and Protocols  IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Interface  16 10/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media  10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity  Fanless

Physical Security Lock  Yes

Power Supply  100-240VAC, 50/60Hz

Dimensions ( W x D x H )  17.3*7.1*1.7 in. (440*180*44 mm)

Max Power Consumption  2.06W(220V/50Hz)

Max Heat Dissipation  7.03BTU/h

PERFORMANCE

Switching Capacity  3.2Gbps

Packet Forwarding Rate  2.38Mpps

MAC Address Table  8K

Buffer Memory  2Mb

Advanced Functions  Green Technology

802.3X Flow Control

Transfer Method  Store-and-Forward

OTHERS

Certification  FCC, CE, RoHS

Package Contents  16-Port 10/100Mbps Rackmount Switch

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

Environment  Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
