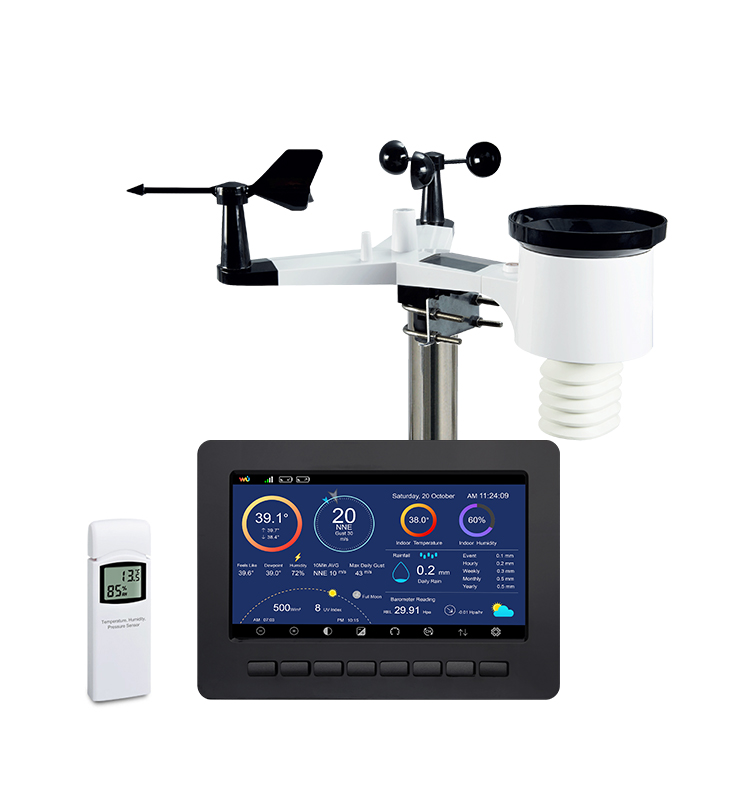

TFT Color Screen Weather Station WiFi and Real-time Internet Publishing

TFT Color Screen Weather Station WiFi and Real-time Internet Publishing

      Dimension

Receiver:195x138x20mm


      Features
1. 7’TFT LCD full color display
2. All the weather data from the base station and weather history data with user adjustable measuring intervals can be recorded     and uploaded to internet website
3. Rainfall data(inches or mm):rainfall rate, 24-hour,one week,one month and year
4. Display illumination/UV index
5. Wind chill and Dew point and heat index temperature display (℉ or °C)
6. Wind speed/Wind direction
7. Solar powered transmitter
8. Pressure,temperature,humidity, windspeed,rainfall,winddirection,UVI and Light parameters can be calibrared
9. Weather alarm modes for temperature, humidity,wind chill,dewpoint,rainfall, windspeed,air pressure
10. Forecast icons based on changing barometric pressure
11.  Barometric pressure(inHg or hPa) with 0.1hPa resolution
12. Wireless Outdoor and Indoor temperature(℉ or °C )/humidity(%RH)
13. Min/Max values along with time and date of their recording
12 or 24-hour time display
14. Time alarm
15. Moon Phase
16. Sunset/Sunrise with time stamp
17. Free Iphone, Ipad and Android APPs available from Wunderground.com


       Specifications
1.Indoor temperature range: -40°C to 60°C
2. Outdoor temperature range: -40°C to 60°C
3. Temperature accuracy:+/-1.0°C
4. Indoor humidity range: 1% to 99% (+/-5% under -20°C to 60°C)
5. Humidity accuracy:+/-5%
6. Rain volume display:0-6000mm
7. Wind speed:0-160km/h(0-100mph)
8. Pressure range:700-1100hpa (27.13-31.89inHg)


      Power consumption
1. Base station: 5V DC adaptor
2. Indoor sensor WH32:2×AAA 1.5V LR03 Alkaline batteries
3. Outdoor transmitter WH65:2×AA 1.5V batteries
