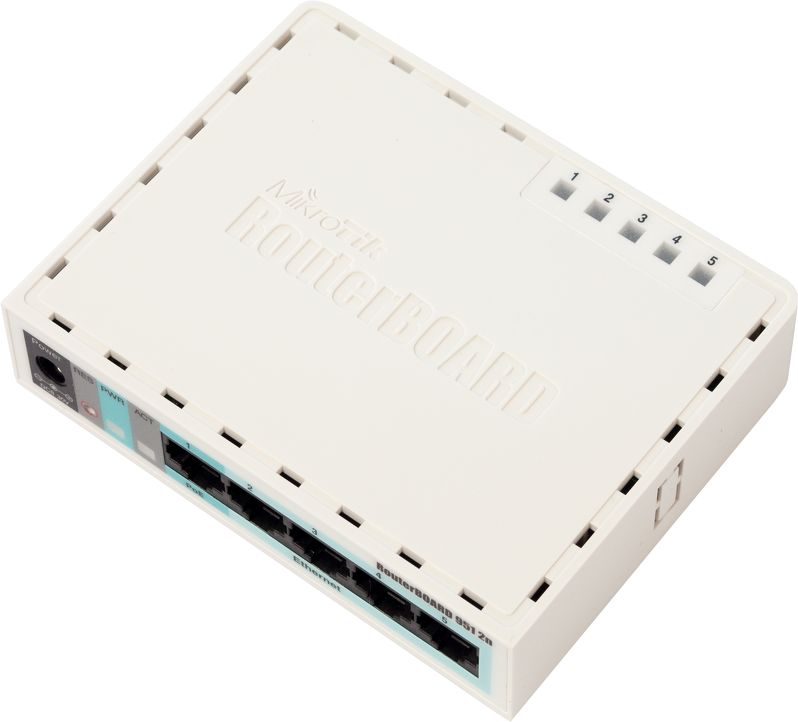

Routerboard 951-2n

Routerboard 951-2n

Product code RB951-2n
Architecture MIPSBE
CPU AR9331
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 113x89x28mm
License level 4
Size of RAM 32 MB
Storage size 64 MB
Storage type NAND
Tested ambient temperature -20C .. +50C

Powering
PoE in Passive PoE
Number of DC inputs 1
Max power consumption without attachments 3W

Wireless
Wireless 2.4 GHz Max data rate 150 Mbit/s
Wireless 2.4 GHz number of chains 1
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model AR9331
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet
10/100 Ethernet ports 5

Certification FCC

Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s
11MBit/s 17
6MBit/s 15 -92
54MBit/s 11 -73
MCS0 15 -92
MCS7 9 -67
