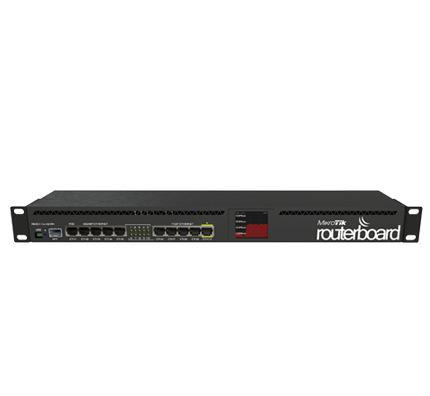

RB2011UIAS-RM

RB2011UIAS-RM

Product code RB2011UiAS-RM
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 443 x 92 x 44 mm
License level 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 60°C
Powering
PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 28 W
Max power consumption without attachments 6 W

PoE-out
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input < 30 V) 510 mA
Max total out (A) 510 mA

Ethernet
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5

Fiber
SFP DDMI Yes
SFP ports 1

Peripherals
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 2

PCB temperature monitor Yes
Voltage Monitor Yes
Certification CE/RED, EAC, ROHS
