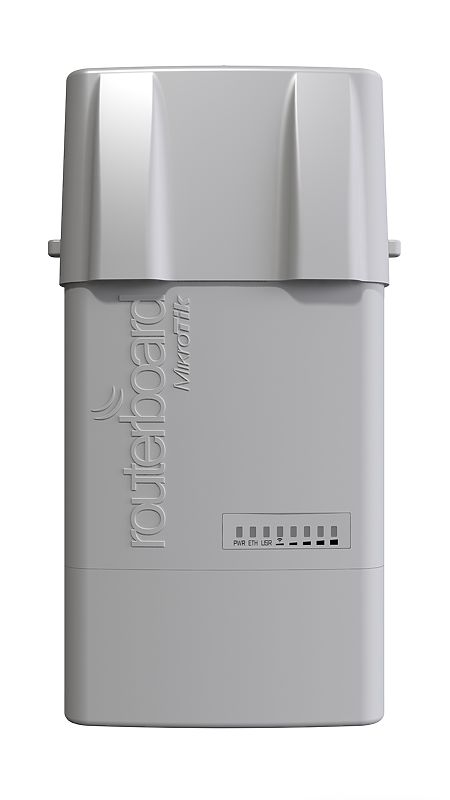

Mikrotik BaseBox 6

Mikrotik BaseBox 6

BaseBox 66GHz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet

Specifications

Details

Product code  RB912UAG-6HPnD-OUT

Architecture  MIPSBE

CPU  AR9342

CPU core count  1

CPU nominal frequency  600 MHz

Dimensions  246 x 135 x 50 mm

License level  4

Operating System  RouterOS

Size of RAM  64 MB

Storage size  128 MB

Storage type  NAND

Tested ambient temperature  -40°C to 70°C

Suggested price  $89.00

Powering

Details

PoE in  Passive PoE

PoE in input Voltage  10-30 V

Number of DC inputs  1 (PoE-IN)

Max power consumption  23 W

Max power consumption without attachments  12 W

Wireless

Details

Wireless 6 GHz Max data rate  300 Mbit/s

Wireless 6 GHz number of chains  2

Wireless 6 GHz standards  802.11a/n

Wireless 6 GHz chip model  AR9342

Wireless 6 GHz generation  Wi-Fi 4

Ethernet

Details

10/100/1000 Ethernet ports  1

Peripherals

Details

Number of SIM slots  1 Modem (Mini SIM)

MiniPCI-e slots  1

Number of USB ports  1

USB Power Reset  Yes

USB slot type  USB type A

Max USB current (A)  1

Other

Details

PCB temperature monitor  Yes

Voltage Monitor  Yes

Certification & Approvals

Details

Certification  EAC

Wireless specifications

6 GHz  Transmit (dBm)  Receive Sensitivity

6MBit/s  30  -93

54MBit/s  26  -80

MCS0  29  -93

MCS7  23  -76
