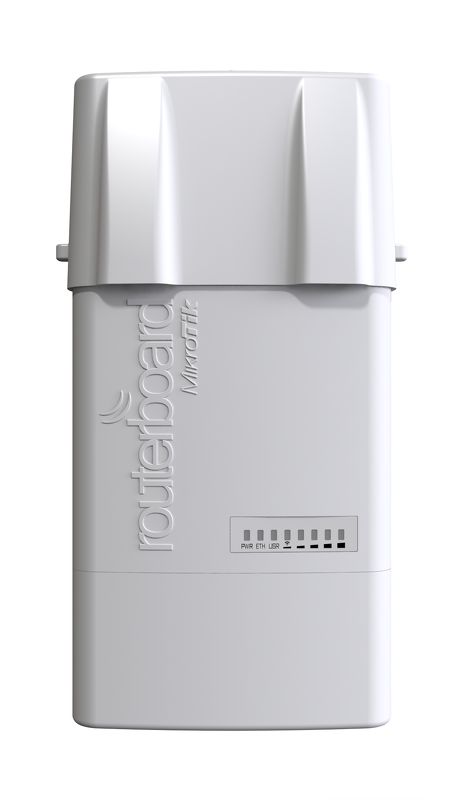

Mikrotik BaseBox 5

Mikrotik BaseBox 5

5Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet

Specifications

Details

Product code  RB912UAG-5HPnD-OUT

Architecture  MIPSBE

CPU  AR9342

CPU core count  1

CPU nominal frequency  600 MHz

Dimensions  246x135x50mm

License level  4

Operating System  RouterOS

Size of RAM  64 MB

Storage size  128 MB

Storage type  NAND

Tested ambient temperature  -40°C to 70°C

Powering

Details

PoE in  Passive PoE

PoE in input Voltage  8-30 V

Number of DC inputs  1 (PoE-IN)

Max power consumption  12 W

Wireless

Details

Wireless 5 GHz Max data rate  300 Mbit/s

Wireless 5 GHz number of chains  2

Wireless 5 GHz standards  802.11a/n

Wireless 5 GHz chip model  AR9342

Wireless 5 GHz generation  Wi-Fi 4

Ethernet

Details

10/100/1000 Ethernet ports  1

Peripherals

Details

Number of SIM slots  1 Modem (Mini SIM)

MiniPCI-e slots  1

Number of USB ports  1

USB Power Reset  Yes

USB slot type  USB type A

Max USB current (A)  1

Other

Details

PCB temperature monitor  Yes

Voltage Monitor  Yes

Certification & Approvals

Details

Certification  CE/RED, FCC, IC, EAC, ROHS

Wireless specifications

5 GHz  Transmit (dBm)  Receive Sensitivity

6MBit/s  30  -96

54MBit/s  27  -78

MCS0  30  -96

MCS7  26  -75
