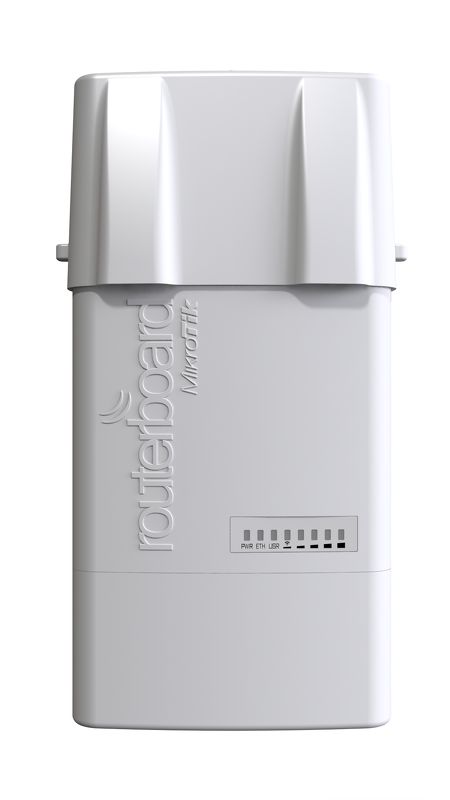

Mikrotik BaseBox 2

Mikrotik BaseBox 2


2.4Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet


Specifications

Details

Product code  RB912UAG-2HPnD-OUT

Architecture  MIPSBE

CPU  AR9342

CPU core count  1

CPU nominal frequency  600 MHz

License level  4

Operating System  RouterOS

Size of RAM  64 MB

Storage size  64 MB

Storage type  NAND

Tested ambient temperature  -40°C to 70°C

Powering

Details

PoE in  Passive PoE

PoE in input Voltage  8-30 V

Number of DC inputs  1 (PoE-IN)

Max power consumption  10 W

Wireless

Details

Wireless 2.4 GHz Max data rate  300 Mbit/s

Wireless 2.4 GHz number of chains  2

Wireless 2.4 GHz standards  802.11b/g/n

Wireless 2.4 GHz chip model  AR9342

Wireless 2.4 GHz generation  Wi-Fi 4

Ethernet

Details

10/100/1000 Ethernet ports  1

Peripherals

Details

Number of SIM slots  1 Modem (Mini SIM)

MiniPCI-e slots  1

Number of USB ports  1

USB Power Reset  Yes

USB slot type  USB type A

Max USB current (A)  1

Other

Details

PCB temperature monitor  Yes

Voltage Monitor  Yes

Certification & Approvals

Details

Certification  FCC, IC

Wireless specifications

2.4 GHz  Transmit (dBm)  Receive Sensitivity

1MBit/s  30  -100

11MBit/s  30  -94

6MBit/s  30  -96

54MBit/s  27  -78

MCS0  30  -96

MCS7  24  -73
