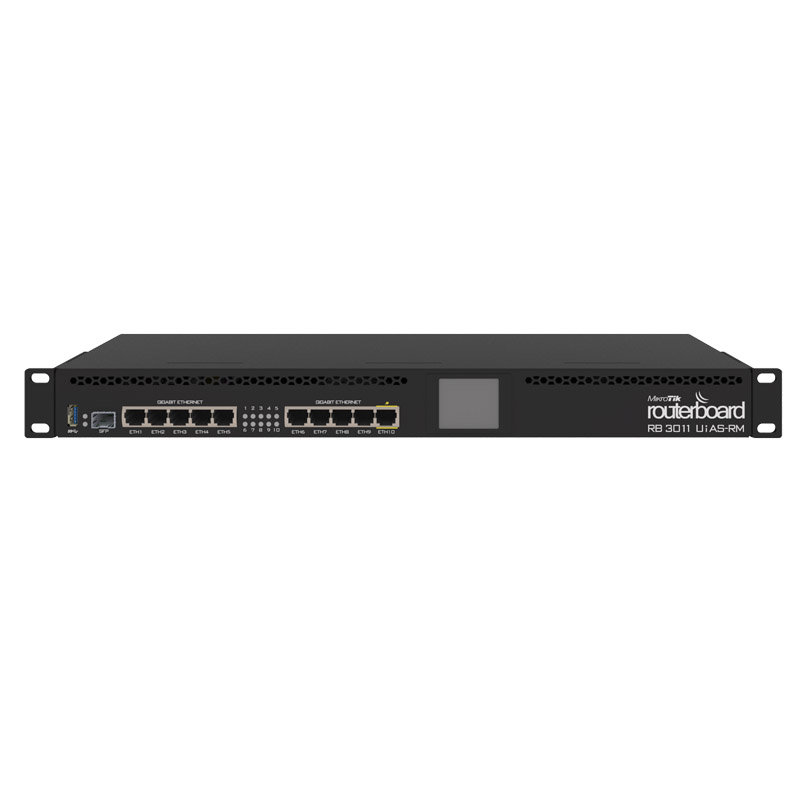

MikroTik RB3011UiAS-RM Ethernet Router

MikroTik RB3011UiAS-RM Ethernet Router

DESCRIPTION
The RB3011 is a new multi port device, the first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a Superspeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.


SPECIFICATION
Processor Specs IPQ-8064
Size of RAM 1 GB
Storage Size 128 MB
Storage Type NAND
Operating System RouterOS
Power Method PoE in 10-30 V
DC jack 10-30 V
Number of PoE-out ports 1
Number of DC inputs 2
Max power consumption without attachments 10 W
Max Power Consumption 30 W
10/100/1000 Ethernet ports 10
SFP ports 1
Number of USB ports 1
Tested ambient temperature -20°C to 70°C
Architecture ARM 32bit
CPU Core Count 2
CPU Nominal Frequency 1.4 GHz
License Level 5
PoE in Passive PoE
PoE in input Voltage 10-30 V
USB slot type USB 3.0 type A
POWERING
Supported Input Voltage Range 10-30 V
