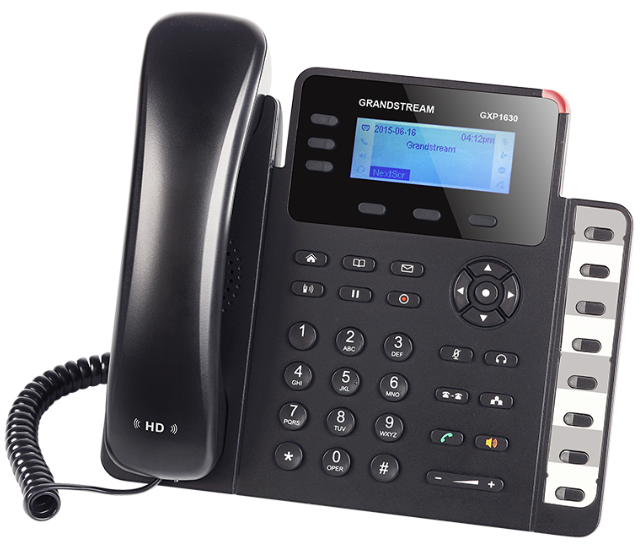

Grandstream GXP1630
A Small Business Gigabit IP Phone
3 SIP accounts, 3 line keys, 4-way conferencing, 3 XML programmable context-sensitive soft keys
HD audio on speakerphone and handset
Dual-switched Gigabit ports, integrated PoE
8 dual-colored BLF/speed dial keys
EHS support for Plantronics headsets
Up to 500 contacts, call history up to 200 records

Protocols/Standards:
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP
Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
Graphic Display: 132 x 64 backlit graphical LCD display
Feature Keys:
3 line keys with dual-color LED and 3 SIP accounts, 3 XML programmable context
sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated functionkeys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE,
VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD,
HOME

Voice Codecs:
Support for G.711/a, G.722 (wide-band), G.723 (pending), G.726-32, G.729 A/B,
iLBC (pending), Opus (pending), in-band and out-of-band DTMF (In audio, RFC2833,
SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
Telephony Features:
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way
conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable
phone book (XML, LDAP, up to 500 items), call waiting, call history (up to
200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot
desking, personalized music ringtones, server redundancy & fail-over

Headset Jack: RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio: Yes, HD handset and speakerphone with support for wideband audio
Base Stand: Yes, 2 angled positions available, wall mountable
Headset Jack: Yes
QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
Security:
User and administrator level access control, MD5 and MD5-sess based authentication,
256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media
access control

Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified
and traditional Chinese, Korean, Japanese and more
Upgrade/Provisioning:
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES
encrypted XML configuration file

Power and Green Energy: Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA PoE:
Efficiency: IEEE802.3 af Class 2, 3.84W-6.49W
Dimension: 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with handset)
Unit weight:0.8kg; Package weight: 1.2kg
Temperature and Humidity:
Operation: 0C to 40C, Storage: -10C to 60C ,
Humidity: 10% to 90% Non-condensing

Package Content:
GXP1630 phone, handset with cord, base stand, universal power supply, network
cable, Quick Installation Guide, brochure, GPL License

Compliance:
FCC: Part 15 (CFR 47) Class B CE : EN55022 Class B, EN55024 Class B; EN61000-3-2,
EN61000-3-3, EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950;
AS/NZS 60950.1
