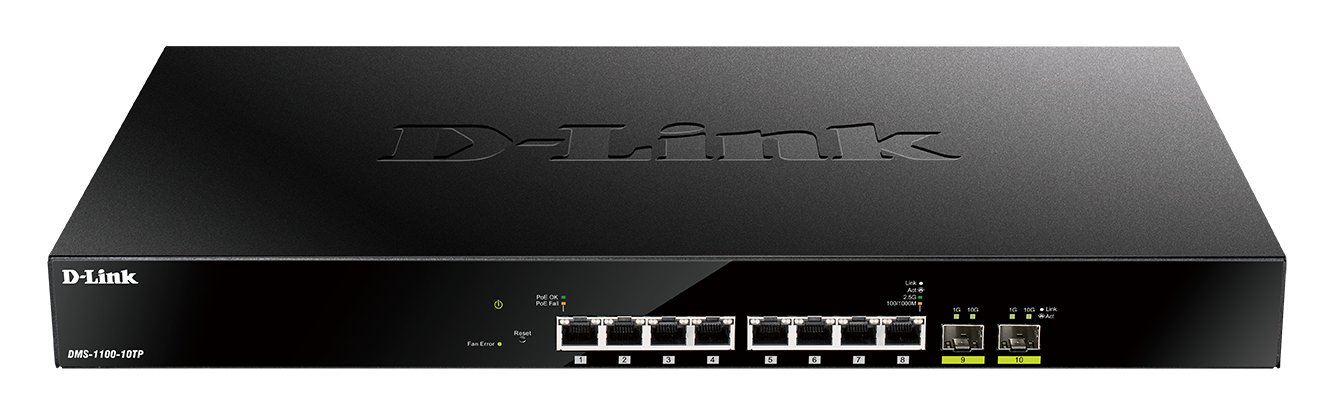

D-Link DMS-1100-10TP

D-Link DMS-1100-10TP

DMS-1100-10TP 8*2.5GBASE-T PoE + 2 * 10G SFP+ Fiber Ports



8-Port Multi-Gigabit Ethernet Smart Managed PoE Switch with 2 10GbE SFP+ Ports

DMS-1100-10TP

Cost-effective 2.5 Gigabit PoE switch designed to service a range of network needs in any type of business.

8 x Multi-Gigabit RJ45 ports that support 2.5G, 1G, and 100M

2 x 10GbE/1GbE SFP+ ports

Advanced L2 switching and security features

Robust 240W PoE Power Budget is awesome


Specifications

2.5Base-T PoE Interface  8

10G SFP+ Interface  2

Auto MDI/MDIX  Yes

Switching Capacity  80 Gbps

Max. Packet Forwarding Rate  59.52 Mpps

Dimension  440 x 250 x 44 mm (17.32 x 9.84 x 1.73 inches)

Weight  3.43kg

Operation Temperature  -5-50°C

Storage Temperature  -40 - 70 ˚C

Operation Humidity  0%-95% RH

Storage Humidity  0% ~ 95% RH

Operating Altitude  2000 m

Maximum Power Consumption  293.4W(PoE full load) 38.1W(PoE off)

Power Input  AC: 100-240V

Packet Buffer Size  12Mbit

FAN  Smart Fan

Maximum PoE Budget  240W
