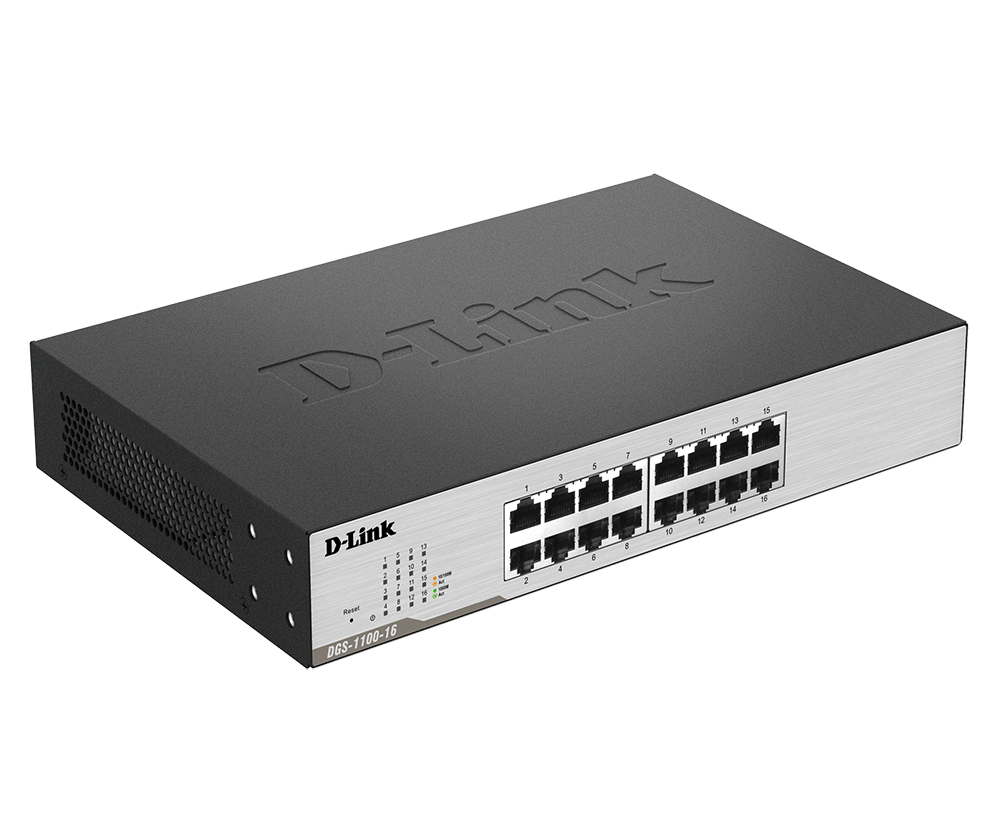

D-Link DGS-1100-16

D-Link DGS-1100-16

16-Port Gigabit Smart Managed Switch

DGS-1100-16

Powerful and flexible networking solution for small, medium, and enterprise businesses.

16 x 10/100/1000BASE-T ports

Fanless design for silent operation

Innovative D-Link Green energy saving features

Complete web interface for comprehensive switch management


Specifications

1000Base-T Interface  16

Auto MDI/MDIX  Yes

10/100/1000BASE-T ports  16

Switch Capacity  32 Gbps

Max. Packet Forwarding Rate  23.81Mpps

Power Input  AC: 100-240V

Comply with RoHS 6  Yes

Energy Efficiency Ethernet (EEE)  Yes

Power Saving By Link Status  Yes

Power Saving By LED Shut-Off  Yes

Power Saving By Port Shut-Off  Yes

Power Saving By System Hibernation  Yes

MAC Address Table Size  8K

802.3x Flow Control  Yes

Head-of-line (HOL) Blocking Prevention  Yes

802.1D Spanning Tree (STP)  Yes

802.1w Rapid Spanning Tree (RSTP)  Yes

802.1AX Link Aggregation  Yes

802.3ad Link Aggregation  Yes

Link Aggregation Group Per Device  8

Max Port Per Link Aggregation Group  8

Port Mirroring  Yes

Jumbo Frame  9216 bytes

Loopback Detection (LBD)  Yes

IGMP Snooping  Yes

Max IGMP Snooping Groups  64

802.1Q VLAN  Yes

VLAN Groups  128

Port-based VLAN  Yes

Voice VLAN  Yes

Auto Surveillance VLAN  Yes

Asymmetric VLAN  Yes

Number of Queue  4

Class of Service (CoS)  Yes

Two Rate Three Color Marker (trTCM)  Yes

Rate Limiting  Yes

Queue Handling  Yes

Strict Priority Queue (SPQ)  Yes

Weighted Round Robin (WRR)  Yes

Port-based Bandwidth Control  Yes

SSL  Yes

Broadcast/Multicast/Unicast Storm Control  Yes

Traffic Segmentation  Yes

D-Link Safeguard Engine  Yes

DoS Attack Prevention  Yes

Cable Diagnostics  Yes

Simple Network Time Protocol (SNTP)  Yes

Web-based GUI  Yes

SNMP  Yes

SNMP Trap  Yes

TFTP Client  Yes

System Log  Yes

LLDP  Yes

D-Link Discover Protocol (DDP)  Yes (v0.25)

DHCP/BootP Client  Yes

Dual Images  Yes

Ping  Yes

D-Link Network Assistant  Yes

Smart Wizard  Yes

Surge/Lightning Protection (AC Power Inet)  2kV

Surge/Lightning Protection (All Ethernet Ports)  1Kv

Store-and-Forwarding  Yes

Dimension  280x 180x 44mm

Weight  1.27 Kg

Operation Temperature  -5-50°C

Storage Temperature  -40-70°C

Operation Humidity  0%-95% RH

Storage Humidity  0% ~ 95% RH

Operating Altitude  2000 m

Maximum Power Consumption  10.1 W

Standby Power Consumption  3.4 Watts

Maximum Heat Dissipation  34.46 BTU/hr

Acoustic  0 dB(A)

MTBF  710,519 hours

CPU Speed  125MHz

DRAM Size  128KBytes

Flash Memory Size  16 MBytes

Packet Buffer Size  4.1 MBytes

FAN  Fanless
